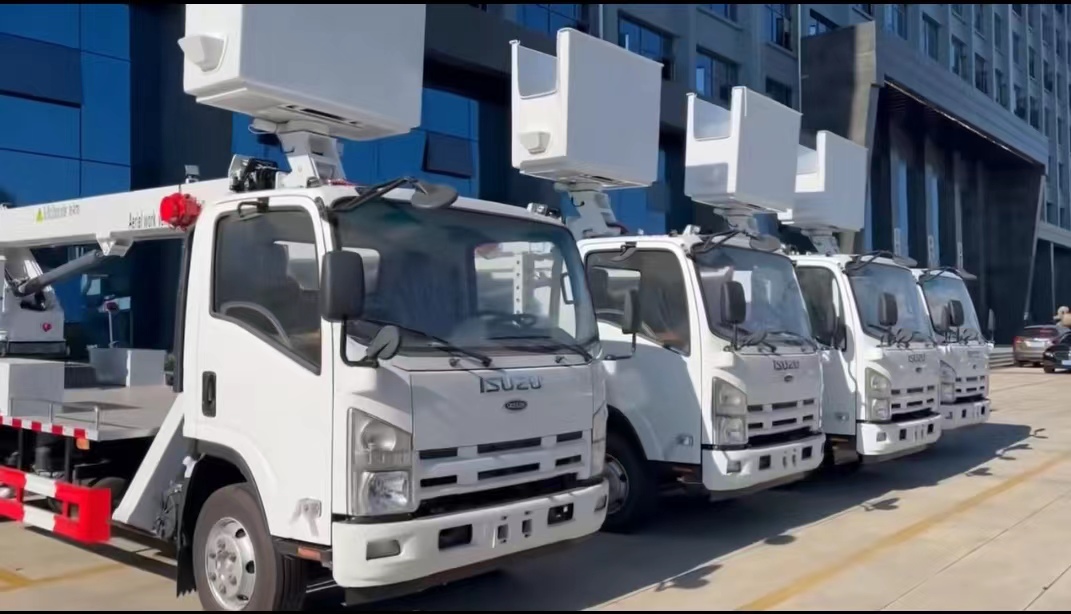

18m ISUZU aerial platform vehicle from Chengli special automobile company

. The ISUZU 18-meter high-altitude work vehicle adopts a telescopic straight arm structure, with a 3-section telescopic arm. The turntable can be operated or remotely controlled, and can rotate 360 degrees. It has four hydraulic legs, and the maximum weight of the work platform is 200 kilograms. The stainless steel enclosure and patterned anti slip walking board are used.

2. The worktable adopts a mechanical self balancing design, which ensures that the worktable is always in a balanced state during operation. The maximum extension angle of the forearm reaches 75 ° for adjustment to the optimal working position.

3. Night work lights can be installed on the operating platform according to the customer‘s working environment, making night work safer.

4. Computer control, automatic amplitude limiting, dangerous work alarm, excellent safety performance. There is a display on the vehicle to display the working conditions of the entire vehicle in real time.

5. The hexagonal work arm increases strength, synchronizes expansion and contraction, has a compact structure, high work efficiency, and a large work range. Externally mounted telescopic oil cylinder and chain telescopic mechanism make it easier to observe fault points and facilitate maintenance.

6. The support legs adopt a front V-shaped and rear H-shaped structure, with a larger stress surface and higher stability; It can prevent deformation or fracture of the vehicle‘s main beam. The legs are individually adjustable, and each leg can be adjusted according to the working ground environment. Even if the ground is uneven, the entire vehicle can be adjusted to a stable state. All legs are equipped with leg flashing lights, which are used to indicate the contour of the legs and emit light alarm signals during operation.

7. The four vertical leg oil cylinders, as well as the upper arm, lower arm, and lower arm oil cylinders, are equipped with bidirectional hydraulic locks. Their function is to lock the oil cylinder when it reaches the required position to prevent accidents. The working arm is equipped with a bidirectional balance valve to ensure smoother operation.

8. The main components of the vehicle, such as bidirectional hydraulic locks, bidirectional lock balance valves, hydraulic flow valves, hydraulic cylinders, engine start stop emergency pumps, operating systems and their control computers, are all made of well-known domestic brands, and the core components are imported parts. Smooth reversing, flexible and convenient operation; The support legs are interlocked with the working arm, ensuring safety and reliability to prevent misoperation.

9. The whole vehicle has three operations: handle operation, manual operation on the display screen, and wireless remote control operation, which is more convenient to observe the working space, safe and reliable, and high work efficiency.
